BoxIO Utility

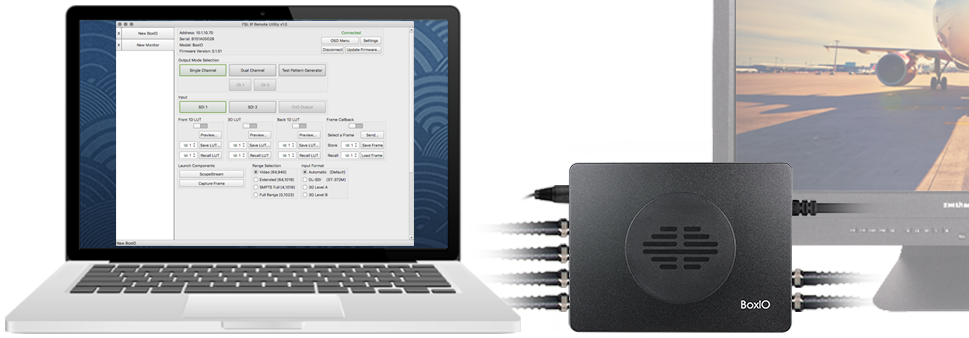

The BoxIO Utility provides useful toggles and controls for management of your BoxIO unit and can be used in conjunction with other applications from FSI’s software partners.

Quickly change operation mode and channel settings, load LUTs to BoxIO to toggle On & Off quickly, Update Firmware, Manage BoxIO IP addresses and WiFi settings, and capture frames at full resolution that can be saved instantly as a .JPG, .BMP, or BoxIO .RAW image.

BoxIO Utility ScopeStream Open Beta

Required BoxIO Firmware: 1.51
Update required for connection. Use release client to update BoxIO firmware.

Please submit all utility bug reports to Beta@FlandersScientific.com.

This public beta of the new BoxIO Utility application retains most of the core functionality found in the previous official Utility release. For general information about BoxIO setup and usage please see the user manual for the latest official release. Additional notes pertaining specifically to the public beta are found below.

NOTES

Connecting to the first BoxIO device: Type in the IP address in the provided field and press Connect.

Adding additional BoxIO:
From Toolbar select [Manage --> Add Device], this will launch a popup dialog asking for a device name. Type in any custom name you like. Then click Add BoxIO, this will create a new slot in the device list. You will then be prompted for an IP address, type in the IP address of the device you would like to assign to the named slot you have just created and press connect.

Once multiple BoxIO devices have been connected you can click on any named slot to gain access to that device.

ScopeStream

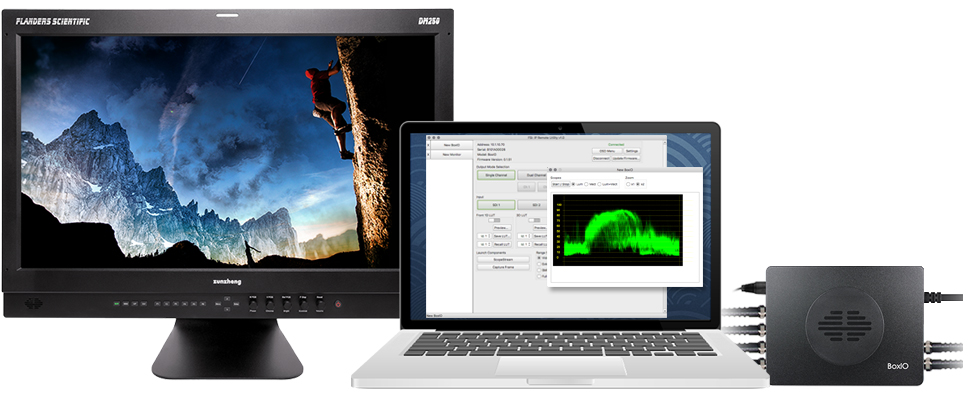

From any device slot click on the ScopeStream button to launch a dedicated scope window for that device. Click Start to enable the scopes. You may launch one ScopeStream window per device, allowing for realtime WFM / VectorScope from multiple devices.

CaptureFrame / Ancillary Data

From any device slot click on the CaptureFrame button to launch a dedicated Capture Frame / Ancillary data window for that device.

KNOWN ISSUES AND BUGS

PC - You may encounter the following error messages:

The code execution cannot proceed because MSVCP1140.dll was not found.
Reinstalling the program may fix this problem.

The code execution cannot proceed because VCRUNTIME140.dll was not found.
Reinstalling the program may fix this problem.

If you encounter errors related to missing .dll files, Run the vcredist_x64.exe found in the Zip file before relaunching the BoxIO beta utility.

BoxIO units using older firmware versions may instantly disconnect. Upgrade BoxIO firmware using the stable release utility (18.1, found above) before running the Beta utility.
Previous device list and naming is not recalled when the application is closed and relaunched. This will be resolved in a future release.
ScopeStream 1x views are displayed in an unnecessarily large window that cannot currently be resized. This will be resolved in a future release.

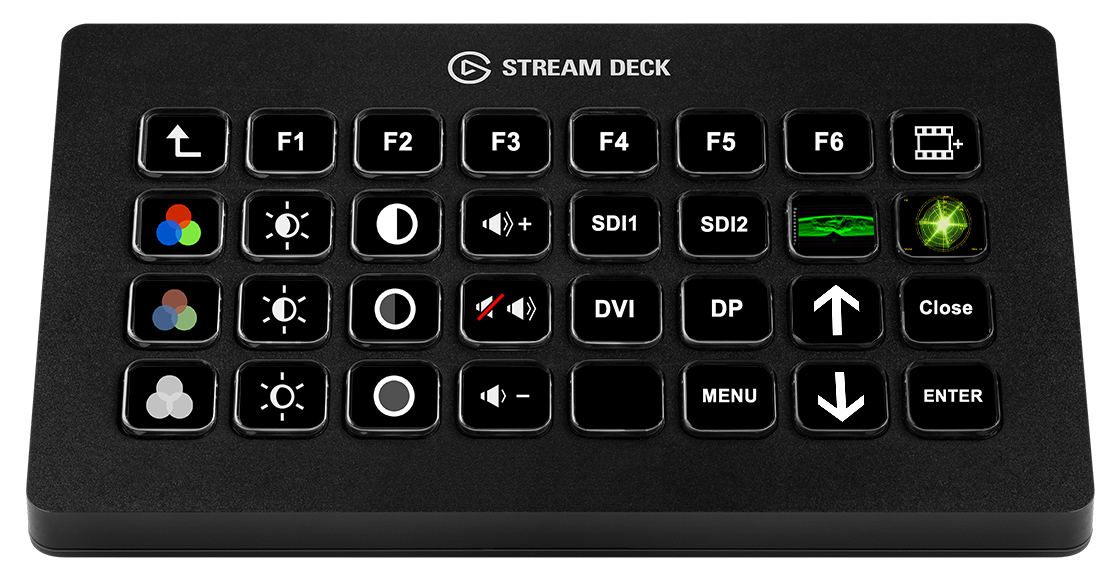

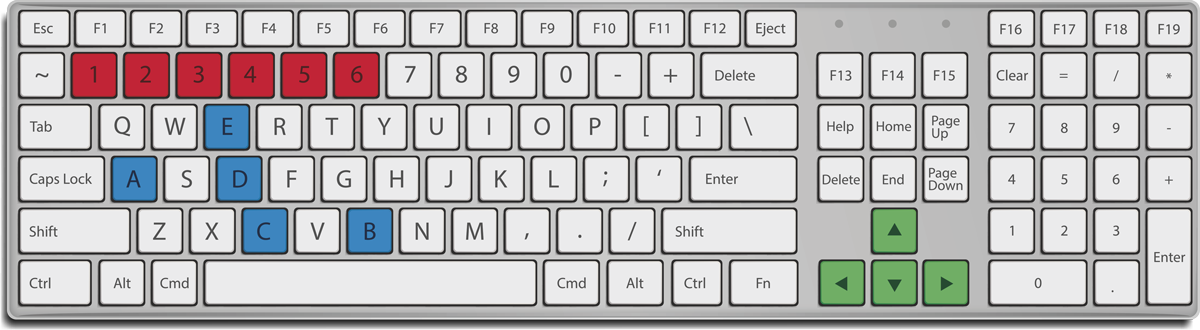

Monitor Utility

Please note the utility available for download requires the newest firmware versions for FSI Monitors and may have limited functionality based on the monitor model. Some units may respond to commands quicker than others so please be patient when sending commands.

Simply download and run the Utility. Enter the IP address of your monitor (System Menu) or BoxIO and hit connect. Once the monitor reads back it's serial number information and the program indicates you've connected in the bottom right hand corner you will be able to control your monitor.

Monitor Utility ScopeStream Open Beta

Required DM Series Firmware: 1.1.04-2207
Update required for connection.

This public beta of the new Monitor Utility application retains most of the core functionality found in the previous official Utility release. The primary change is the addition of ScopeStream support.

Please submit any suspected application bugs to Beta@FlandersScientific.com.
