Bit Depth (Color)
10bit (1.073 Billion Colors)
Contrast Ratio
~4,000,000:1
Panel Type
Quantum Dot OLED
Max Luminance (Typical)
~2,000cd/m
2 @ L20
~1,300cd/m2 @ L32
~650cd/m2 @ L50
~400cd/m2 @ L70
~250cd/m2 @ Full Screen
Maximum Native Color Gamut
4 x BNC
12G/6G/3G/HD-SDI - Clean Loop
4 x BNC
6G/3G/HD-SDI - Processed Loop
SMPTE-274M
1080i (60/59.94/50)
1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)
SMPTE-296M
720p (60/59.94/50/30/29/25/24/23.98)
2K
2048x1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
SMPTE-372M
1080p (60/59.94/50) 4:2:2 YCbCr, RGB
1080i (29.97/25/24/23.98) 4:4:4 YCbCr, RGB
1080p (30/29.97/25/24/23.98) 4:4:4 YCbCr, RGB
720p (60/59.94/50) 4:4:4 YCbCr, RGB
SMPTE-425M-AB
- Level A & Level B supported
- Level B supports 2 x SMPTE
292M image format mapping
372M image format mapping
- RGB & YCbCr
12 & 10bit 4:2:2 1920x1080p (60/59.94/50)
4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98)
12 & 10bit 4:4:4 1920x1080i (60/59.94/50)
12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/23.98 + PsF variations)
12 & 10bit 2k (2048x1080)p (30/29.97/25/24/23.98 + PsF variations)
12 & 10bit 2K (2048x1080)p (60/59.94/50/48/47.95)
ST2081 & ST2082
4K & UHD
Single-Link 12G
Single-Link 6G
Dual-Link 6G
Dual-Link 3G Square Division
Quad-Link 3G Level A Square Division
Quad-Link 3G Level B Square Division
Quad-Link 1.5G Square Division
10 & 8bit 4:2:2 4096x2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
10 & 8bit 4:2:2 3840x2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
12 & 10bit 4:4:4 4096x2160p (30/29.97/25/23/23.98) YCbCr & RGB
12 & 10bit 4:4:4 3840x2160p (30/29.97/25/23/23.98) YCbCr & RGB
Removable Desktop Feet
Standard
Wall Mountable
300mm x 200mm VESA

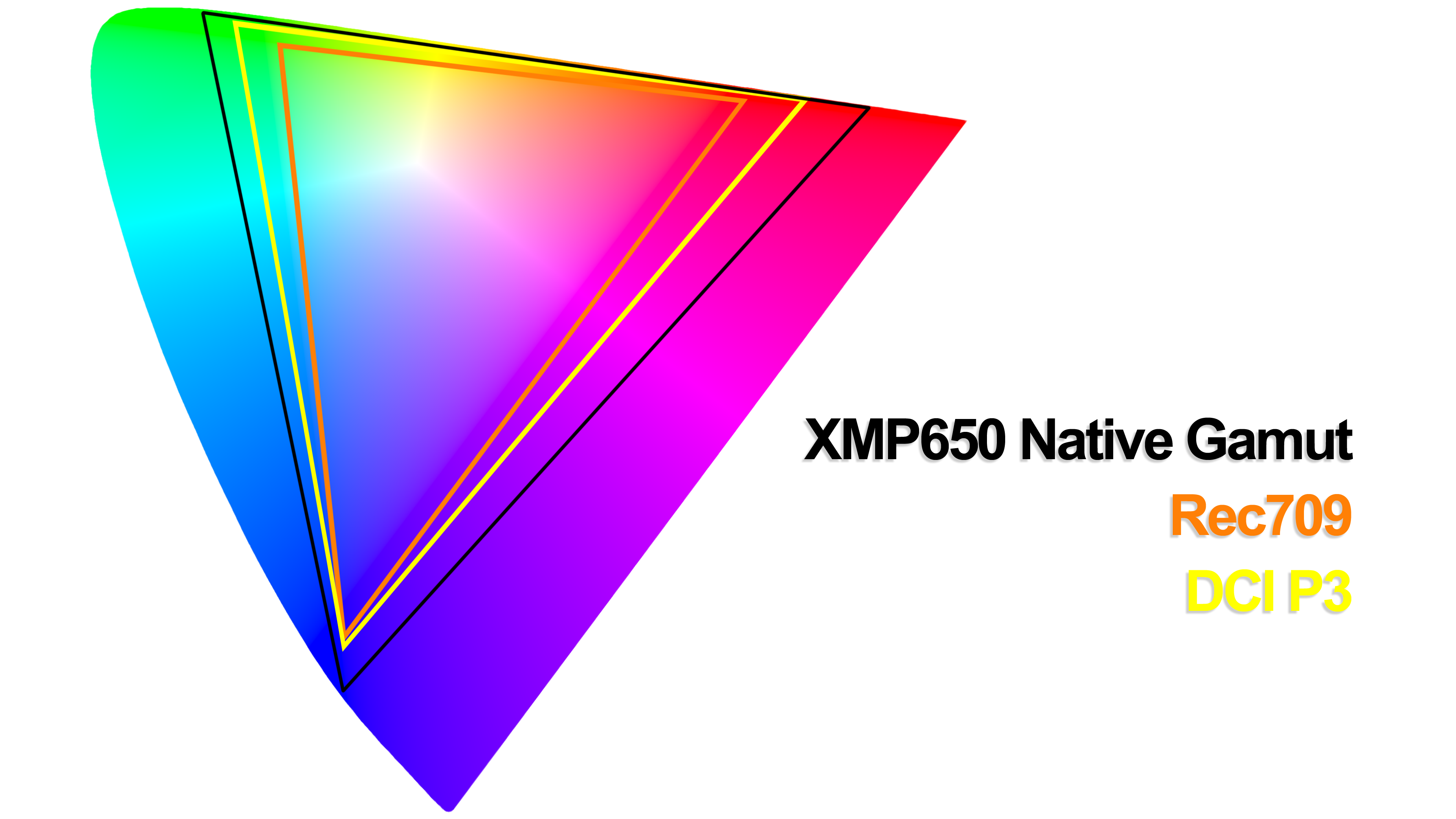

Color Space Selection
REC709/DCI-P3/Rec2020*/Custom
*covers ~90% of Rec2020 color gamut
Color Temperature Selections
3200K, 5000K, 6000K (P3-D60), 6300K (P3-DCI), 6500K, 9300K, CUSTOM
EOTF Selections
γ(1.0 / 1.8 / 2.0 / 2.2 / 2.35 / 2.4 / 2.6 / 2.8), PQ-ST2084, HLG, CUSTOM
Direct Connect Volumetric AutoCal
Compatible with CR100, K10A, K80, CA210 & CA310 (10mm), CA410, & i1D3DS OEM
Power Requirement
100~240 VAC
Power Consumption (Appx.)
TBD
Weight without feet
54.8lbs (24.9kg)
Weight with feet
56.2lbs (25.5kg)
