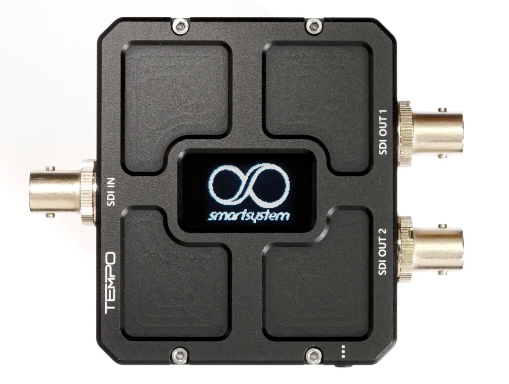

TEMPO 12G Splitter, Reclocker, and Signal Analyzer

The Tempo is a ruggedized 12G SDI 1 x 2 Splitter, Reclocker, and Signal Analyzer. It accepts 1.5G, 3G, 6G, and 12G signals.

The integrated OLED display confirms the input signal type and provides an easy to read link quality indicator. Additionally, the TEMPO is equipped with a diagnostic SDI Eye pattern, which can be indispensable when trying to confirm if you are receiving a poor or marginal quality signal that may cause issues with equipment downstream from the source. The buffered and reclocked outputs may also help to clean up signals that are marginal to prevent potential issues with gear further downstream from the device.

Power supply sold separately. Requires 10VDC-17VDC via 2pin power connector.
